The original Whitnall BoardClip

Concealed fixing bracket for horizontal deck skirting.

Fit ranch-style skirt and fascia boards around raised decking from the front, with concealed fixings, removable access and room for board movement.

For UK and Republic of Ireland installers, holiday park decking companies, suppliers, merchants and competent DIY customers. Invented by qualified joiner and carpenter Neville Whitnall, developed with Innovate UK support and made in Conwy.

Request trade pricing and samples See how it works

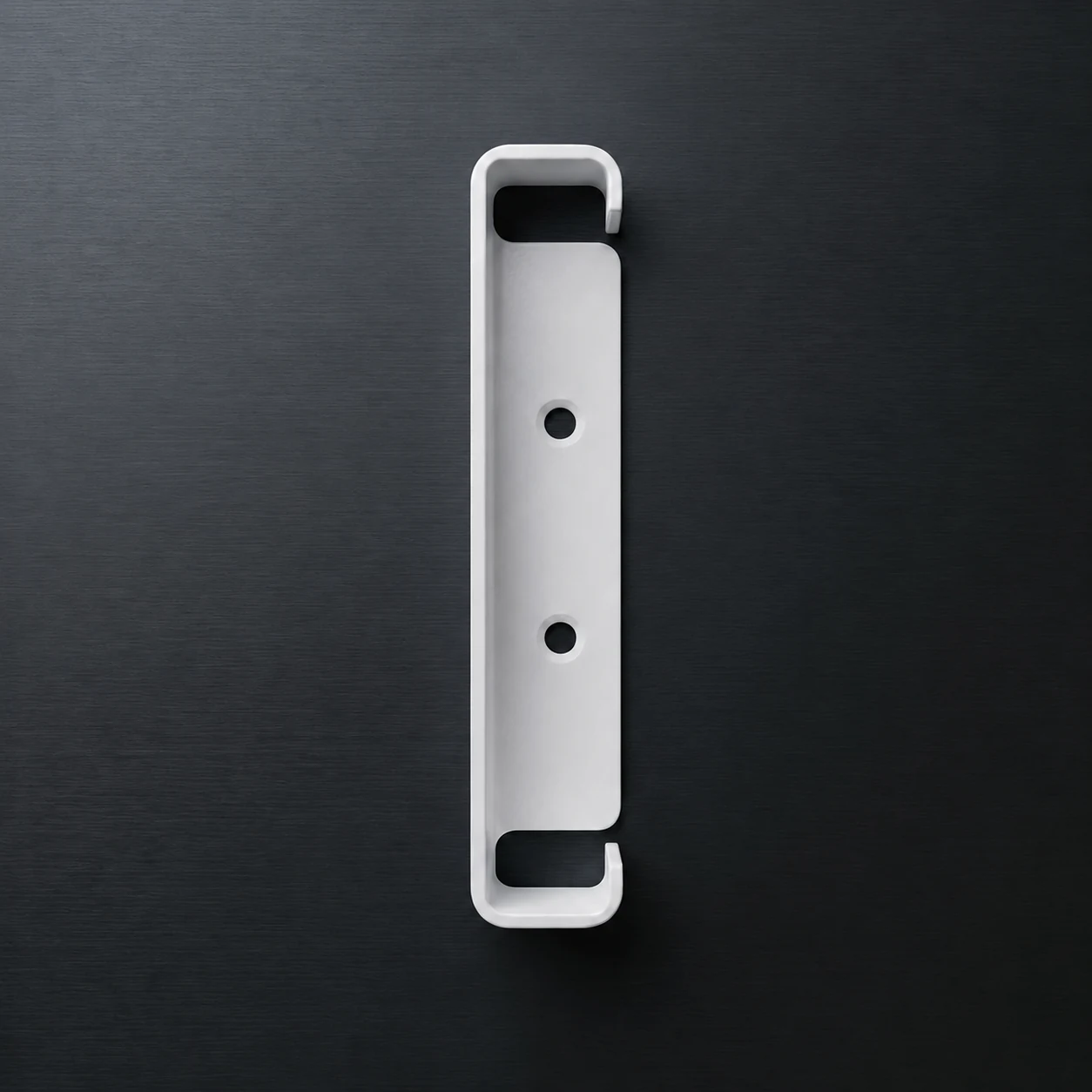

White Whitnall BoardClip concealed deck skirting fixing bracket on a charcoal surface — 01 The original Whitnall BoardClip

FeaturedProfessional Builder

Trade-ledCreated by an experienced carpenter

Made locallyManufactured in Conwy

Built-in toleranceApproximately 20 to 30 mm

The product

Designed around the job, not the drawing board.

The awkward part

Traditional installation can mean leaning over the deck, driving screws at an angle or working underneath. Visible fixings can interrupt the finish, while rigid installation can restrict natural board movement.

The BoardClip method

Fix each bracket to the post, then clip the board into place from the front. The fixing stays concealed, boards remain removable for access, and the bracket allows movement as temperatures change.

Explore the benefits

On site

Screw. Cut. Clip.

A practical three-stage method for horizontal deck skirt and fascia boards.

01
Screw
Fix a BoardClip to each post on either side of the opening, using two screws per bracket.
02
Cut
Cut each board to length. Approximately 20 to 30 mm of positioning tolerance helps simplify preparation.
03
Clip
Present the board from the front and clip each end into its bracket. No tool is needed for this stage.

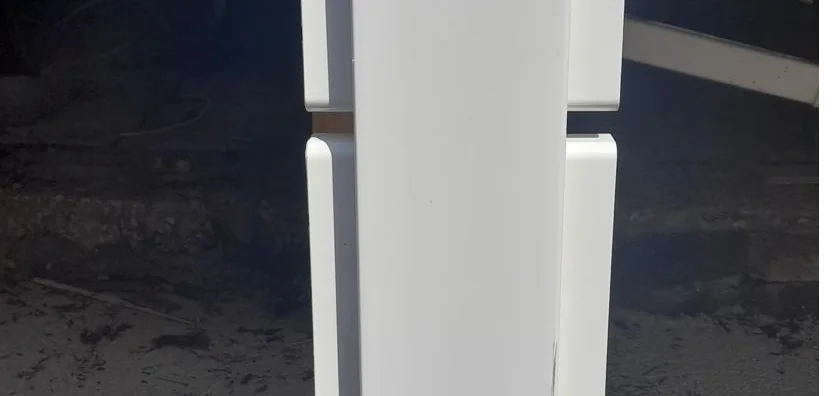

Whitnall BoardClip fixed to a deck post before the horizontal board is clipped in — **Fix the bracket**Two screws secure each BoardClip to the post.

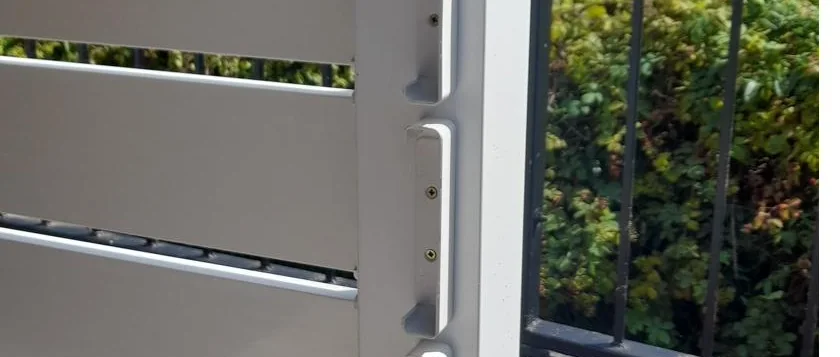

Horizontal ranch board being fitted from the front into Whitnall BoardClip — **Clip in from the front**The board is presented to the opening and clipped into place.

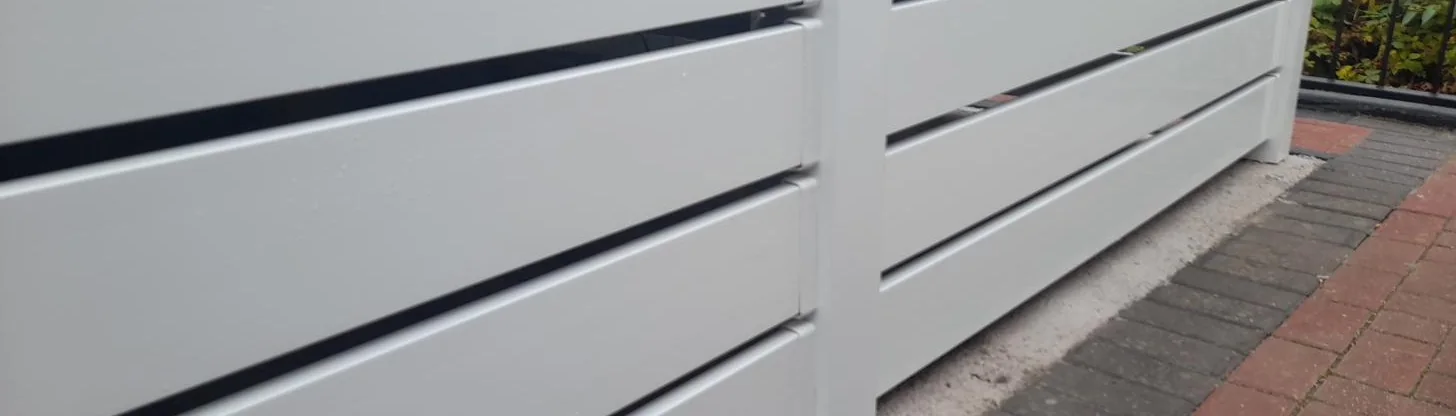

Completed raised deck with horizontal ranch-style skirting boards and concealed fixings — **Clean finished face**No screw heads or caps interrupt the horizontal boards.

Practical advantages

Small component. Practical result.

More straightforward fitting

Boards clip in from the front, helping reduce awkward angled fixing and work beneath the deck.

Concealed fixings

No visible screw heads or caps across the face of the board, for a cleaner finished elevation.

Removable boards

Individual boards can be unclipped for maintenance access, then returned without damage.

Natural movement

The board can slide within the bracket as it expands and contracts with temperature changes.

Useful tolerance

Approximately 20 to 30 mm of tolerance allows installers to work more confidently from deck plans.

Made for the real world

Developed through years of fitting raised decking, then refined through prototypes and on-site use.

I’ve always been someone who tries to improve on working practices and find a better way.

Neville WhitnallInventor and experienced carpenter

As featured in Professional Builder

Made from experience

One tradesman’s determination to find a better way.

Neville Whitnall is a qualified joiner and carpenter who has spent years installing decking. BoardClip began as a direct response to one of the most awkward parts of a raised deck build: fitting the horizontal skirting boards.

Early sketches were developed with product specialists at Menai Innovation Centre into CAD drawings and 3D-printed prototypes. With support from Innovate UK, the design progressed to local manufacture in Conwy.

Site experience

A recurring installation problem identifies the opportunity.

Design development

Sketches become CAD drawings and 3D prototypes.

Product refinement

Practical testing informs each stage of development.

Conwy manufacture

The finished BoardClip is produced locally in North Wales.

Built for the trade

Where BoardClip fits.

Decking installers

Holiday park decking companies

uPVC decking suppliers

Merchants and distributors

Competent trade and DIY customers

Colour options

Developed and supplied in a range of colours.

Ask about current colour options and availability for your project or stock requirement.

Frequently asked questions

BoardClip, clearly explained.

What is Whitnall BoardClip?

Whitnall BoardClip is the original purpose-designed concealed fixing bracket for fitting ranch-style skirt and fascia boards around raised decking.

Is BoardClip designed for horizontal boards?

Yes. BoardClip is purpose-designed for horizontal ranch-style skirt and fascia boards around raised decking.

How are boards fitted with BoardClip?

The brackets are screwed to the posts, boards are cut to length, then each board is presented and clipped into place from the front.

Can fitted boards be removed for access?

Yes. Individual boards can be unclipped for maintenance access and then returned without damaging the board.

Does BoardClip allow for expansion and contraction?

Yes. The board can slide within the bracket as it expands and contracts with temperature changes, with about 20 to 30 mm of positioning tolerance.

How do I make a BoardClip trade enquiry?

UK and Republic of Ireland trade customers can email info@whitnallboardclip.co.uk about availability, pricing and samples.

Trade enquiries

Bring a cleaner finish to your next raised deck.

Contact Whitnall BoardClip for product availability, trade pricing and sample enquiries.

info@whitnallboardclip.co.uk Request pricing and samples
